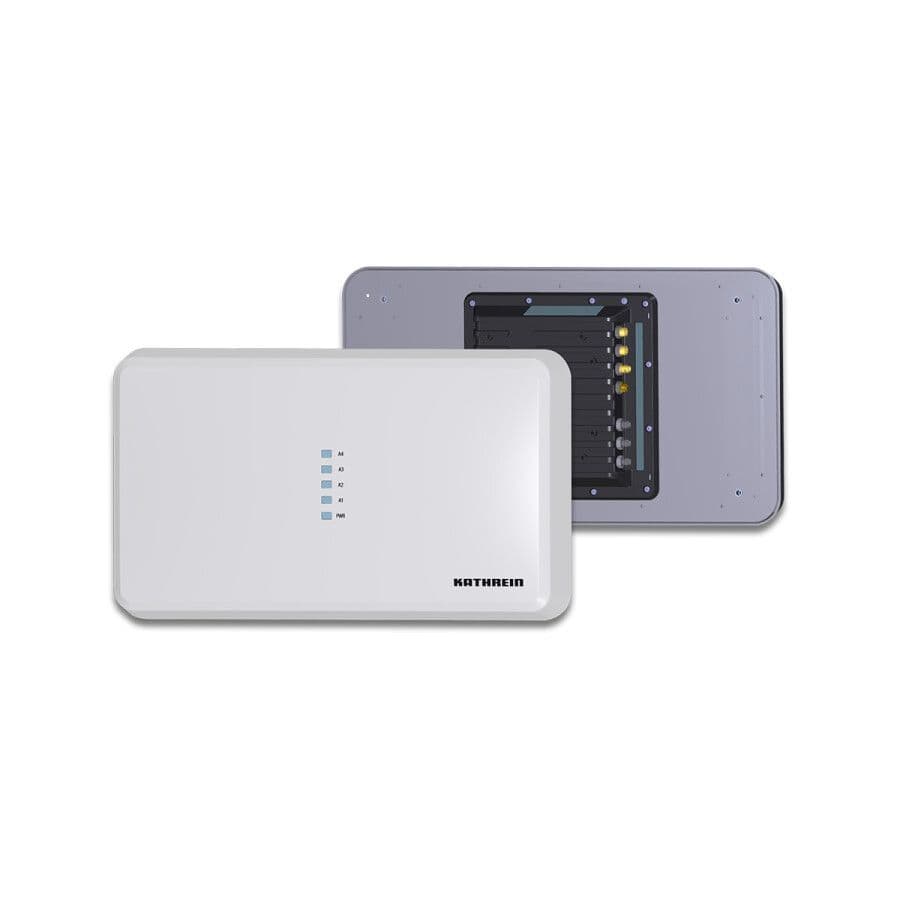

The new ARU 8500 reader enables a reliable detection of goods and the direction of movement. The core function of the ARU 8500 is a circular switch-beam antenna. In contrast to standard RFID antennas, the antenna beam here can be swivelled in three areas to track the direction of movement in a gantry or when the goods pass through a gate. The otherwise easily detected pass-through area is divided into three zones in order to reliably determine the direction of movement when the goods pass through the gate (zone 1 to 3; zone 3  to 1). Particularly helpful here is the ability to distinguish the transported goods that pass through all three zones from the unmoved goods that are only detectable in one zone.

Features:

• Dimensions: 656mm x 362mm x 113mm
• Protection class: IP40
• Antenna ports: 3 Ports
• Linux
• Antenna connector: M12
• ETSI Version: ARU 8500 Antenna Reader Unit, CSB Ant.,PoE GPIO, ETSI
