Product Description

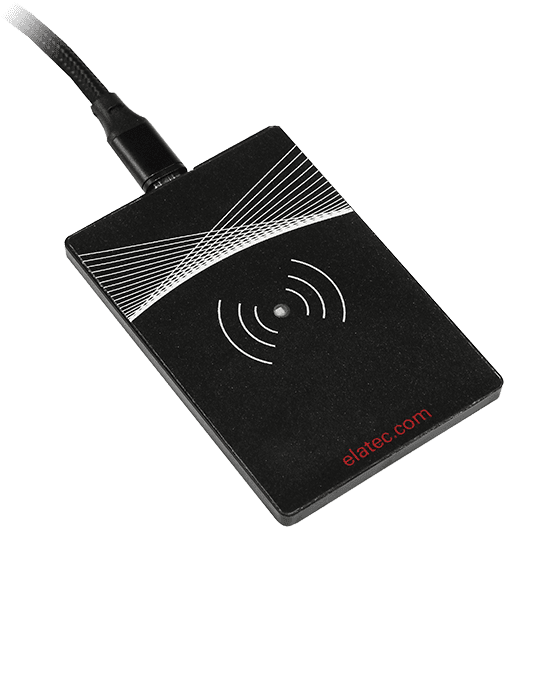

The TWN4 Slim is ELATEC’s smallest compact and flat RFID reader – it’s smaller than a classical credit card for perfect machine integration.

Key features of the TWN4 Slim MK2 reader include an extremely compact form factor that enables a smooth integration into almost any host system, an optimised design for industrial and secure printing applications, and a powerful SDK for writing apps that are executed directly on the reader. Additionally, the reader can read more than 60 RFID technologies from low (LF) and high frequency (HF) bands, including NFC and BLE. This gives the option to select as many of the technologies required instead of being forced to select just a few ones.



Special Features:
  • Extremely compact device
  • Ideal for limited space
  • 60+ RFID Technologies supported: LF, HF, NFC and smart cards

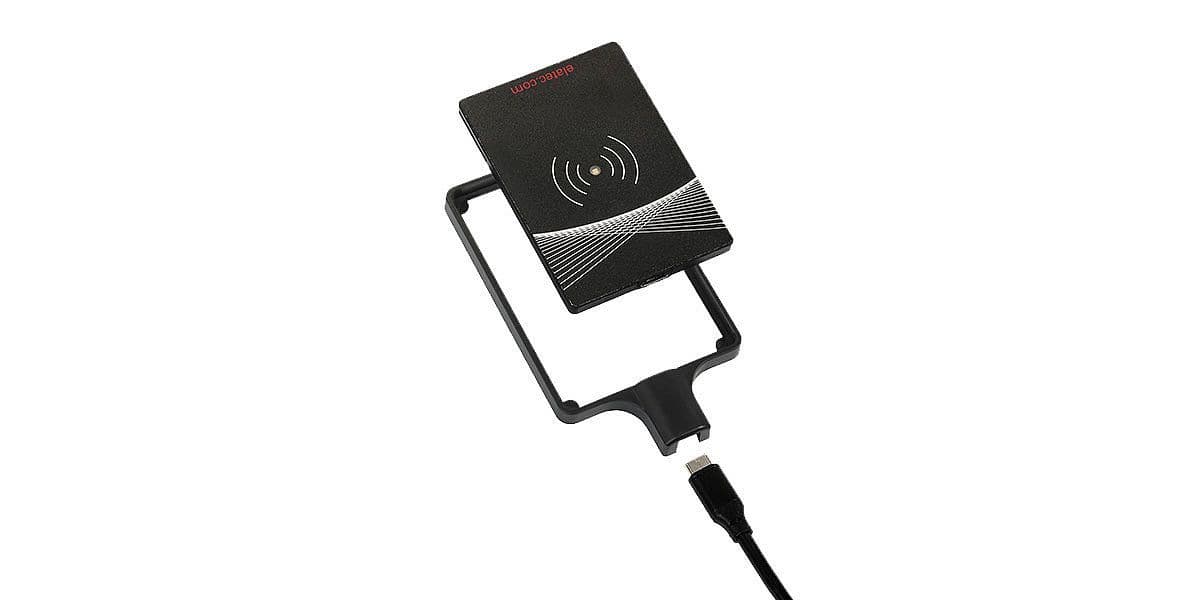

  • Standalone operation and flush-mount integration into printers and other industrial applications
  • Integrated LF and HF antennas
  • Integrated BLE module 2.4 GHz for data communication and authentication, BLE v4.2, upgradable
  • Flexible cable with standard micro-USB connector, many protocols, including CCID and PC/SC 2.01
  • Once socket for Secure Access Modules (SAM) cards, ID-000 form factor

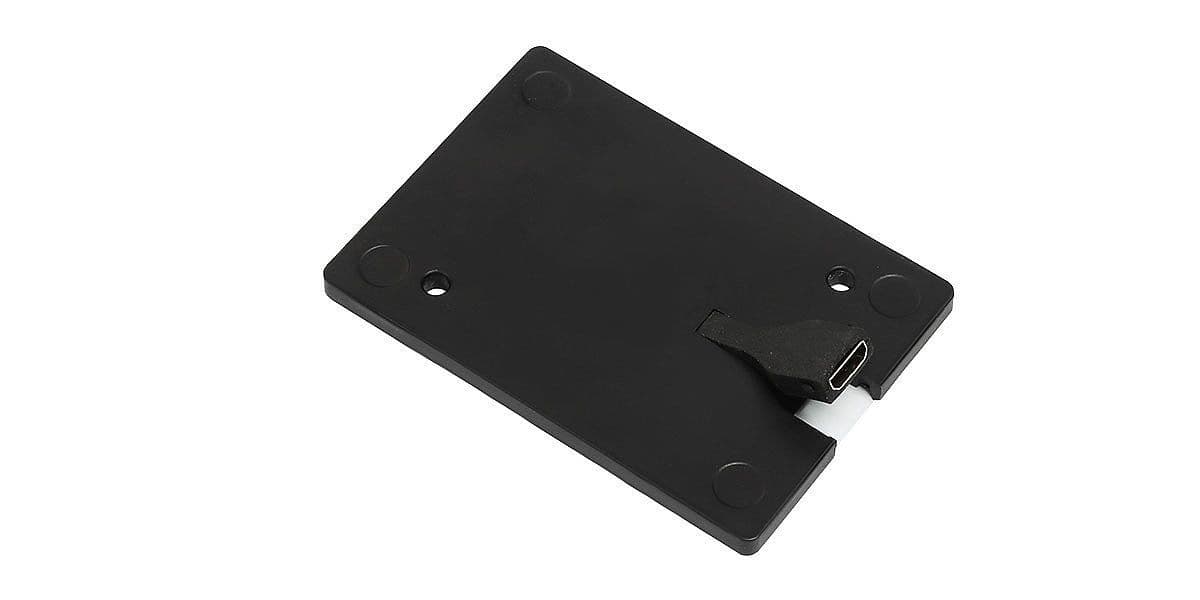

  • Optional mounting holes for easy and fast installation
  • Supports fast (re)configuration over network and over wireless interface with TWN4 CONFIG card
  • TWN4 Upgrade Card for P and PI options available on request
  • Powerful SDK for writing apps which are executed directly on the reader
  • Onboard 18Kb flash storage, e.g. for storing user accessible non-volatile data
  • Direct chip-commands support
  • Customisable design inlay
  • 3D construction data (STEP) on request




Specifications

Product Code
T4QC-FE3B7
Weight
1kg
