ID-3 LA
ID-3 LA

Product Description

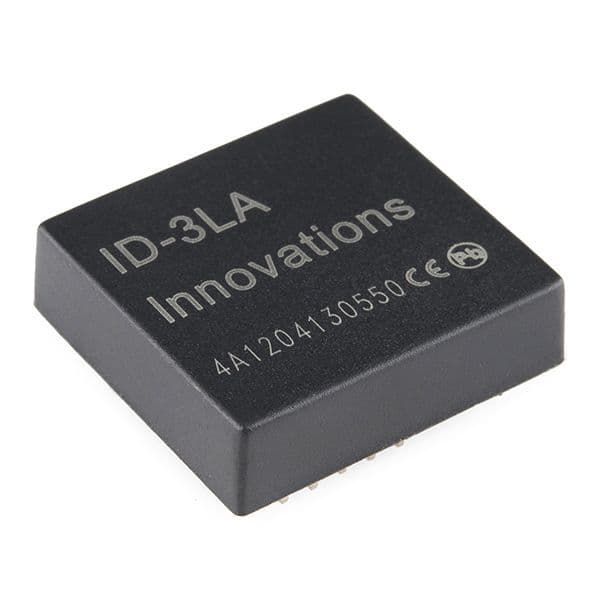

The ID-3 LA is a small footprint 2.8-5.0 volt reader modules that support ASCII, Wiegand26 and Magnetic ABA Track2 data formats. The modules are pin and function compatible with the ID-2/12/20 series.

Features

  • Frequency: 125kHz nominal
  • IC Format: EM4xxx or compatible
  • Encoding: Manchester 64-bit, modulus 64
  • Power Requirement: +2.8 VDC thru +5 VDC @ 35mA
  • RF I/O Output Current: +/- 200mA PKPK
  • Certification: CE, C-TICK, ROHS, FCC

Specifications

Product Code
IDI015
Weight
0.5kg

Customer reviews

No reviews left yet
Write A Review

The ID-3 LA is a small footprint 2.8-5.0 volt reader modules that support ASCII, Wiegand26 and Magnetic ABA Track2 data formats. The modules are pin and function compatible with the ID-2/12/20 series.

Features

  • Frequency: 125kHz nominal
  • IC Format: EM4xxx or compatible
  • Encoding: Manchester 64-bit, modulus 64
  • Power Requirement: +2.8 VDC thru +5 VDC @ 35mA
  • RF I/O Output Current: +/- 200mA PKPK
  • Certification: CE, C-TICK, ROHS, FCC
