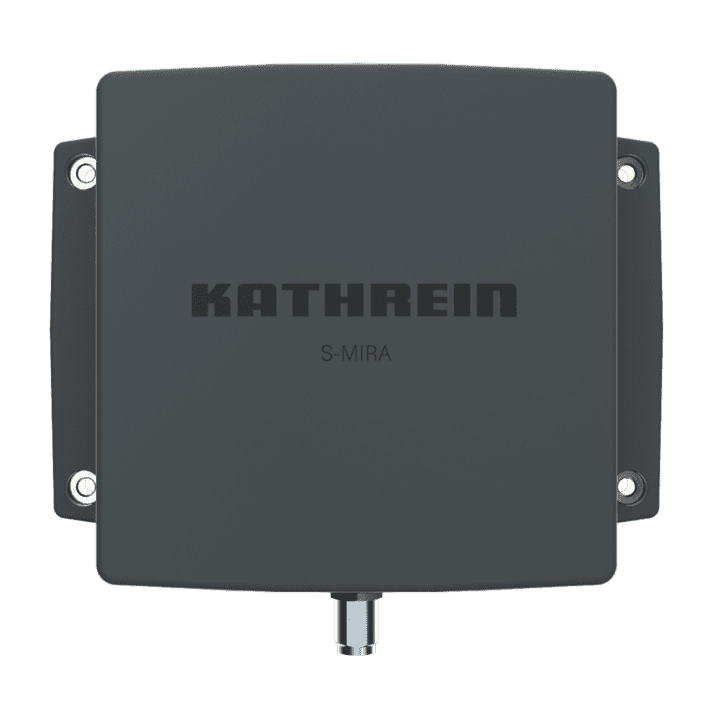

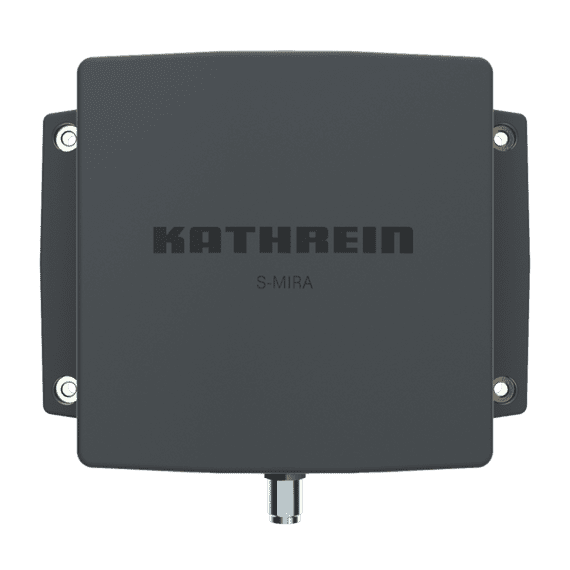

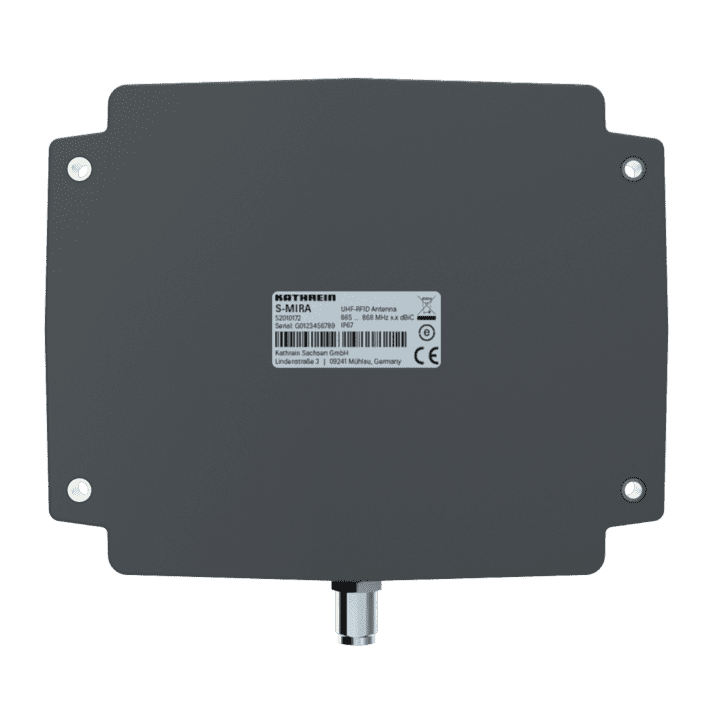

Kathrein MIRA-100-circular-ETSI Mid Range Antenna, 2,5 dBic, circular TNC-socket, ETSI

The mid-range antenna (MiRa) was developed for applications in range between the near and far field. The focus of the compact design was for integration in space-critical applications. The typical read range varies from 0.2 to 2m of course this is depending on tag properties, environment and requirements. Reading distances of up to 5  are possible with tag dimensions of only 13 x 15 m. In most cases the MiRa is used for reading distances up to 2m, for which it features sufficient selectivity. Therefore, this antenna design is especially suitable for applications in the so-called transition area with different tag types.

Features:

• Dimensions: 156mm x 143.8mm x 36mm
• Polarisation: Linear
• Protection class: IP67
• Region: ETSI
• Gain: 2.5 dBi
