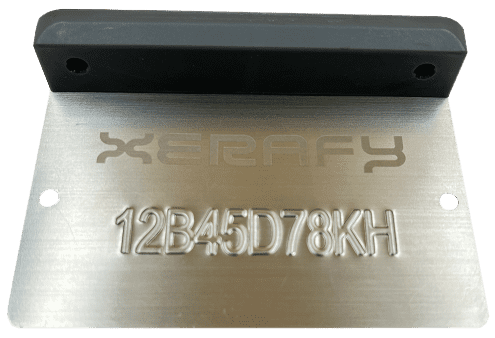

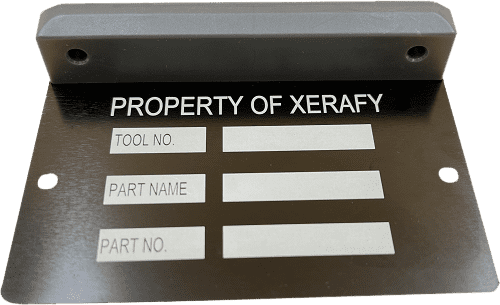

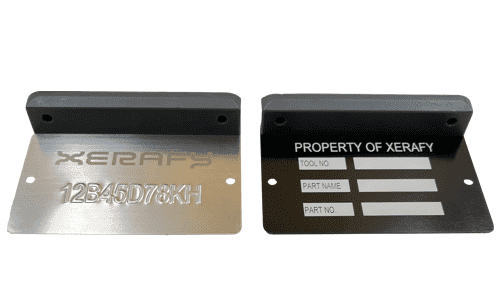

The Xerafy XPLATE is a smart RAIN RFID nameplate that enables asset tracking and identification in the field.

The proprietary Xerafy technology solves the problem of read angle at height, thanks to multi-directional long-range performance.

With a custom metal plate allowing for all types of visual markings, the all weather tagging solution is designed to deliver superior reliability and accuracy for critical assets.

• Standards compliance: EPC Global Class 1 Gen 2 compatible
• Operating Frequency:  865-868MHz (European)
• IC: Impinj M750
• Read Distance On Metal:  Typically up 10m
• Read Distance Off Metal:  Typically up 6m
• Dimensions: 85 x 59.30 x 15.40mm, 85 x 50.80mm (metal plate)
• Weight:  11.80g
• Attachment:  Pop rivets, screws, welding, adhesive (optional)
• Environmental rating:  IP68
• Operating Temperature: -40^o to +85^oC
• Survival Temperature: -40^o to +85^oC (168 hours)
• Peak Temperature: 100^oC (100 hours)
