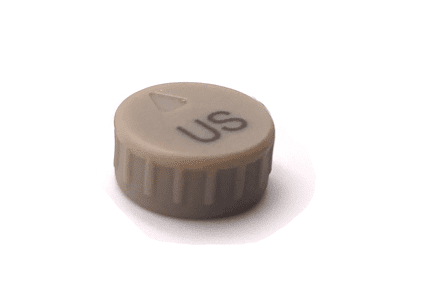

The Xerafy XS Wedge is a small rugged RFID tag engineered to deliver high performance in harsh environments.

Its round design makes it easily embeddable in metal where it offers up to 1 meter read range. The rugged RFID tag uses a high-performance polymer for its IP68-rated case to ensure exceptional dirt, chemical, UV, and wear resistance, as well as excellent mechanical properties.

• Standards compliance: EPC Global Class 1 Gen 2 compatible
• Operating Frequency:  865-868MHz (European)
• IC:    Alien Higgs 9
• Read Distance:  Typically up 0.60m with fixed reader, 0.40m handheld
• Dimensions: 10.30 x 4.60mm (+/- 0.1)
• Weight:  8g
• Environmental rating:  IP68
• Operating Temperature: -40^o to +85^oC
• Survival Temperature: -50^o to +220^oC (168 hours)
• Peak Temperature: 250^oC (2 hours)
